Prestige Platform Lift

If you are having trouble viewing the video above click here

Prestige

Prestige is a free standing platform lift that requires no wall or supporting structure. This keeps building work to a minimum and reduces installation time. Prestige lifts loads of 400kg up to 13 metres and has a spacious platform, which accommodates a wheelchair user plus a carer.

Prestige is part of our platform lifts range, and extremely popular with architects and building contractors. It is available in a variety of materials and colours, and customers can specify glazing in the shaft and doors. This makes Prestige perfect for public venues, such as retail outlets, restaurants, and exhibition centres.

Prestige is one of the few platform lifts to have LABC (Local Authority Building Control) approval. This means it complies with all building regulations and eliminates the need for excessive consultation with local authorities during the planning process.

Prestige A401 - Full Shaft Glazing

Prestige uses a traditional screw system to raise and lower the platform. A belt driven version is also available, Prestige A401. Belt drive allows the lift’s self-supporting enclosure to be glass on all four sides. The carriage control panel can be brass, stainless steel, or hardwoods like oak or mahogany.

Platform Lifts - An Ideal Access Solution

Prestige’s controlled acceleration and deceleration eliminate jolting at landings, and the platform lift incorporates all electrical equipment. This removes the needs for a separate machine room or ugly cabinet.

Positioned at a convenient height, Prestige’s tactile illuminated push button controls allow wheelchair users to operate the lift independently. Floor or pit mounted, Prestige features self-closing doors and position indicators on each landing.

As with all our platform lifts, Prestige comes with a twelve-month warranty.

Flexible Options

Prestige has the option of powered or fire-rated doors, and there is a choice of single, through or adjacent entry configuration. Key isolation and/or operation prevent misuse (e.g. by children in a public venue). Other options include a hands free intercom unit and remote landing controls.

Platform Lifts for the Safety Conscious

Prestige has its own enclosure, which prevents anybody becoming trapped under or falling off the platform. The doors interlock with the drive mechanism, preventing people entering the shaft while the lift is in motion. Prestige features a hand winding system in case of power failure, and a carriage alarm in case of emergency.

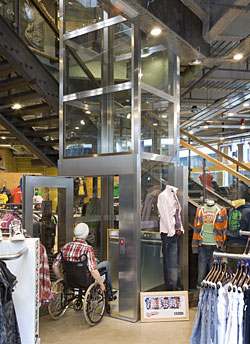

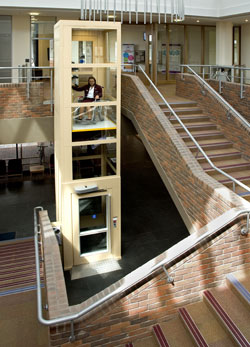

Featured Platform Lift Installations

Prestige is a popular platform lift, and we have installed hundreds of units all over the UK. Check out our two featured projects using the links below. For more application stories please visit our newsroom.

Brief Tech Spec...
Prestige
  • Lifting capacity:
    400kg
  • Lifting height max:
    13m
  • Platform size:
    1100 x 1500mm
  • Footprint of lift:
    1450 x 1650mm
  • Pit:
    50mm or we supply ramp
Prestige A401
  • Lifting capacity:
    400kg
  • Lifting height max:
    13m
  • Platform size:
    1100 x 1500mm
  • Footprint of lift:
    1350 x 1650mm
  • Pit:
    50mm or we supply ramp
